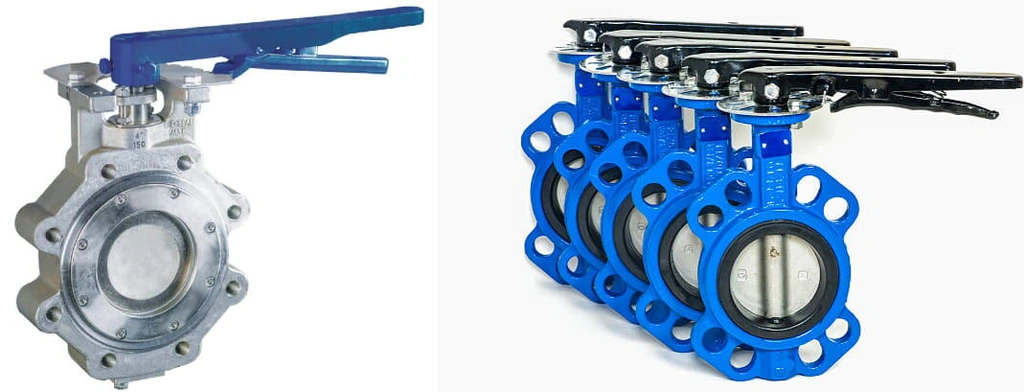

Choosing Between General Service and High-Performance Butterfly Valves

Selecting the right butterfly valve for your industrial process is more than a routine decision—it’s a critical step that can impact system reliability, safety, and efficiency. Butterfly valves are widely used across industries for their compact design, affordability, and ease of operation. However, not all butterfly valves are created equal. Depending on the operating conditions, such as pressure, temperature, and the nature of the fluid or gas being handled, choosing between a general service or a high-performance butterfly valve can make all the difference.

In this article, we explore the core differences between general service and high-performance butterfly valves, outlining how each type functions, their construction features, and where they’re best applied. This guide is designed to help you make an informed decision tailored to your specific process needs.

Butterfly valves are essential flow control devices that regulate or isolate the movement of fluids and gases through pipelines. Their defining feature is a rotating metal disc mounted on a shaft within the valve body. When the disc is turned perpendicular to the flow, the valve is closed; when aligned with the flow, the valve is open. Because they require only a quarter turn—90 degrees—to open or close fully, butterfly valves offer quick operation and minimal footprint.

These valves can be operated manually using a handle or gear, or automatically via electric, pneumatic, or hydraulic actuators. Their versatility, cost-effectiveness, and ability to perform in a wide range of applications—from water distribution and HVAC systems to chemical processing and power generation—make them a go-to solution for engineers worldwide.

General service butterfly valves are the standard choice for low to moderate pressure and temperature applications. They’re designed for systems that handle chemically neutral substances like air, water, and steam. These valves typically feature a concentric design, with the stem centered in the disc and the disc centered in the valve body, providing a reliable sealing performance for most non-corrosive fluids.

Materials: General service valves usually incorporate rubber or elastomer seats such as EPDM, NBR, or Viton, which provide effective sealing but limit the valve’s thermal and chemical resistance.

Seat and Shaft Configuration: These valves have a liner or seat that lines the inner body of the valve. The shaft, often connected via a splined design, runs through the disc and is supported by top and bottom bushings that act as bearings.

Operation: Manual versions are often equipped with a 10-position handle, though automation is also available for more complex systems using pneumatic or electric actuators.

General service butterfly valves are well-suited for vacuum service and applications requiring simple on/off or throttling control. They can handle pressures up to approximately 285 PSI and temperatures up to around 250°F (depending on the seat material). However, their soft seats and limited pressure/temperature tolerance restrict their use in more demanding or hazardous environments.

Additionally, these valves are typically available in sizes up to 30 inches, which may limit their suitability for large-scale industrial systems.

High-performance butterfly valves, often referred to as double-offset or triple-offset valves, are engineered for applications that involve higher pressure, elevated or cryogenic temperatures, and chemically aggressive or erosive media. These valves go beyond the capabilities of general service models by offering enhanced sealing, material options, and design sophistication.

Offset Configuration: Unlike concentric general service valves, high-performance valves feature an offset stem design. This reduces seat wear during operation, improves sealing under high pressure, and minimizes friction.

Advanced Seat Materials: These valves use seats made from PTFE, reinforced TFM, graphite, or metal-to-metal contact surfaces, offering superior chemical resistance and durability.

Body and Disc Construction: High-performance butterfly valves are commonly manufactured from stainless steel, carbon steel, duplex stainless, or exotic alloys. Welded constructions allow them to withstand extreme service conditions ranging from cryogenic temperatures (as low as -320°F) to elevated temperatures up to 1200°F.

Additional Safety Features: Many high-performance valves include stem seal extensions for fugitive emission control, adjustable packing glands to prevent external leakage, and mechanical stops to prevent over-travel.

High Pressure and Temperature Tolerance: These valves can manage pressure ratings up to 1440 PSI, making them ideal for critical service applications.

Chemical and Corrosive Media Compatibility: With materials like PTFE and graphite, these valves are suitable for acids, bases, solvents, and other reactive substances.

Size Range: High-performance butterfly valves are available in sizes up to 60 inches, expanding their use into large-scale municipal and industrial systems.

Water distribution and wastewater systems

HVAC and building utilities

Irrigation and agricultural processes

General-purpose air and gas flow control

Low-pressure steam systems

These valves offer a practical solution for budget-conscious projects and systems that do not involve aggressive media or high pressure/temperature requirements.

Power generation plants (nuclear, thermal, hydro)

Petrochemical and chemical processing facilities

Oil and gas pipelines and refineries

Pulp and paper production

Marine and offshore environments

Cryogenic gas transport and storage

Fire protection systems requiring UL/FM approved valves

The rugged design and superior materials used in high-performance valves ensure long-lasting performance under severe conditions, where leakage or valve failure could lead to costly downtime or safety hazards.

When selecting a butterfly valve, consider the following criteria:

Media Type: Is the fluid or gas corrosive, abrasive, or hazardous? High-performance valves offer better chemical resistance.

Operating Pressure and Temperature: Will the valve be exposed to high or fluctuating pressures and temperatures? Opt for high-performance models for robust operation.

Flow Requirements: Do you need simple on/off control or precise throttling? Consider actuation type and flow modulation capabilities.

Pipe Size and Space Constraints: High-performance valves come in larger sizes and may require more installation space.

Budget and Lifecycle Costs: While general service valves are cheaper upfront, high-performance valves often provide better longevity and lower maintenance costs.

Butterfly valves are indispensable components in modern flow control systems, but understanding the difference between general service and high-performance models is key to ensuring long-term success. While general service valves offer a cost-effective solution for simple, low-pressure systems, high-performance valves are essential for demanding environments where safety, durability, and precise control are paramount.

Whether you’re designing a municipal water system, upgrading a power plant, or managing a chemical processing facility, selecting the right butterfly valve can improve reliability, reduce maintenance, and optimize operational efficiency.

As industrial processes become more complex and regulatory standards more stringent, the demand for versatile, high-performing valve solutions continues to rise. By carefully evaluating your system’s needs and the capabilities of each valve type, you can confidently choose a butterfly valve that will serve your application effectively for years to come.
