A Comprehensive Guide to the Applications of Concentric Butterfly Valves

In the field of fluid control, concentric butterfly valves have become the valve of choice in many industries due to their high efficiency and economy. From water treatment to HVAC systems, these valves are widely used because of their simple yet effective design. In this paper, the characteristics, functional advantages and common application areas of concentric butterfly valves will be discussed in depth.

Concentric Butterfly Valve Introduction

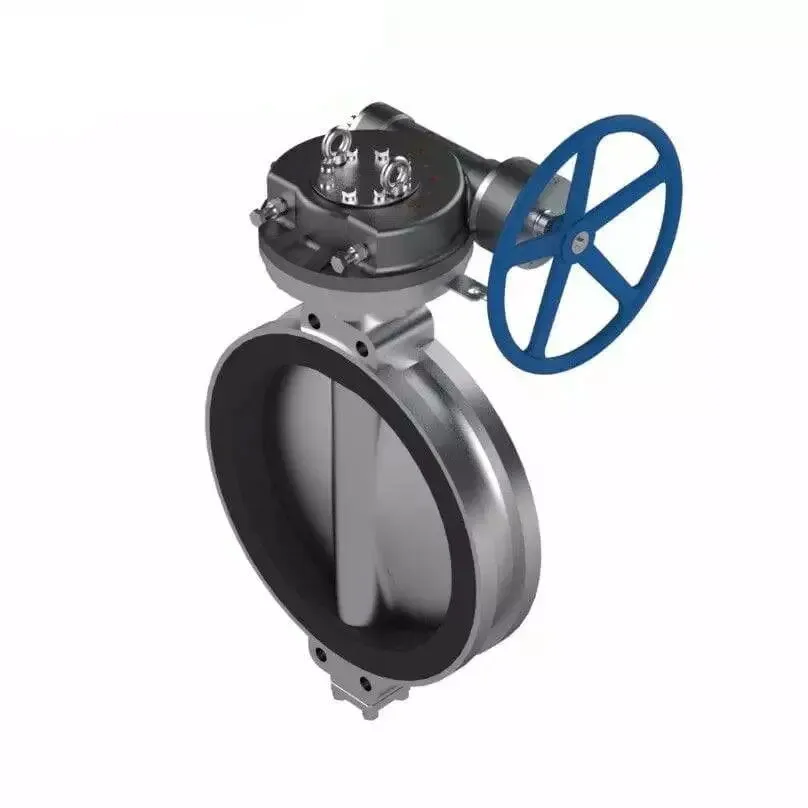

The concentric butterfly valve is a right-angle rotary valve that adjusts the flow of fluid by rotating the disc. The unique design of the valve is that the disc is mounted on a central shaft around which the disc can be rotated to open or close the flow. When the valve disc is parallel to the flow direction, the valve opens and the fluid can pass smoothly; When the disc is rotated to a vertical position, the fluid flow is completely blocked and the valve closes.

Operating Principle

The working principle of the concentric butterfly valve is simple and clear. When a manual or automatic actuator rotates the stem, the disc rotates around its central axis, regulating the path through which the fluid flows. Due to the perfect alignment of disc and body, this design makes valve operation and maintenance easy and efficient.

When the valve is open, the valve disc is consistent with the flow direction of the fluid, causing the least resistance to ensure the smooth passage of the fluid; In the closed state, the valve disc effectively blocks the flow path and provides good sealing performance. This design is particularly suitable for applications that require quick and reliable shutdowns.

The Advantages of Concentric Butterfly Valves

Concentric butterfly valves are favored for their many advantages. First of all, its economy is due to the simple design and production process, which makes the cost significantly lower than many other valve types, especially suitable for large-scale applications. Second, the concentric butterfly valve's lightweight and compact design enables it to be installed and used in space-limited environments. In addition, due to the right-angle rotary design, the concentric butterfly valve can be opened and closed quickly, suitable for systems with high reaction time requirements. The concentric butterfly valve also has a wide range of applicability and can handle a variety of fluids, including water, air and certain chemicals, depending on the material choice of the valve. Finally, the maintenance work of the concentric butterfly valve is relatively simple, because it has fewer moving parts, compared to complex valves, maintenance is easier.

Material Selection

The material selection of concentric butterfly valves varies according to the specific application and fluid properties. Cast iron is commonly used in water treatment and wastewater management because of its high durability and cost effectiveness. Stainless steel is suitable for corrosive fluids or high temperature environments, it has good rust and corrosion resistance. Brass is suitable for small valves and is widely used for its strength and corrosion resistance. In low pressure or corrosive fluid applications, plastics are favored due to their cost and light weight. The selection of these materials ensures that the concentric butterfly valve can meet the needs of different industrial environments.

Application Field

Concentric butterfly valves are widely used in various industries because of their high efficiency and durability. In water management, it is used to regulate the flow of water in municipal and industrial water supply systems. In HVAC systems, concentric butterfly valves control the flow of air and water to ensure efficient operation of the system. Concentric butterfly valves are also widely used in the chemical manufacturing industry, especially in situations where the flow of chemicals needs to be controlled, especially when corrosion resistant materials are used. In addition, in the oil and gas industry, concentric butterfly valves are used for flow control and isolation in oil and gas pipelines, ensuring the safety and reliability of energy transmission. These applications demonstrate the versatility and importance of concentric butterfly valves in different fields.

Comparison of Concentric Butterfly Valve and Eccentric Butterfly Valve

Although concentric butterfly valves are widely used in many situations, eccentric butterfly valves also show their unique advantages in some specific applications. The main difference is the alignment of the stem and disc. The stem and disc of the concentric butterfly valve are centered, which is simple in structure and more convenient in operation. In contrast, eccentric butterfly valves have stems positioned away from the center of the disc, which improves sealing and reduces seat wear. Therefore, the eccentric butterfly valve is generally suitable for high pressure situations, it can provide better sealing performance and lower friction loss, to meet the higher requirements for valve performance in high pressure environments.

Maintenance Essentials

The main maintenance measures include leak detection, which is regularly checked for leaks around the seat and stem. Actuator inspection is also important to ensure that the actuator or handle is running smoothly and without obstacles. Seal inspection is another critical step, requiring regular inspection of the seal and gasket status and timely replacement if necessary to avoid leakage. In addition, keeping the valve clean is also part of the maintenance work to avoid impurities and contaminants affecting the valve operation.

The service life of a concentric butterfly valve is affected by a number of factors, including material selection, working environment, and level of maintenance. Normally, these valves can last for several years if properly maintained. Using high-quality materials and following a maintenance plan helps to extend valve life and ensure long-term stable operation.

Choose the Right Concentric Butterfly Valve

When choosing a concentric butterfly valve, the following key aspects should be considered. First, fluid properties are factors that must be considered to ensure that the valve material is compatible with the fluid to be controlled to prevent chemical reactions or corrosion. Pressure and temperature conditions are also important parameters in the selection of valves, the need to choose the right pressure and temperature conditions for the specific application of the valve to ensure that it can work properly under extreme conditions.

Size and flow requirements can not be ignored, it is necessary to ensure that the valve size meets the system flow and pipeline specifications to ensure that the valve can meet the needs of the system. Control requirements are also an important consideration, and it is necessary to determine the type of control required, whether it is a simple switch control or a more refined flow regulation, which will affect the selection and configuration of the valve.

Conclusion

Concentric butterfly valves are an integral part of many fluid control systems because of their high efficiency, economy and reliability. Understanding its working principle, advantages and application scenarios helps users make wise decisions in practical applications. Whether in water management, HVAC or chemical production, concentric butterfly valves provide a reliable solution for fluid flow control.
