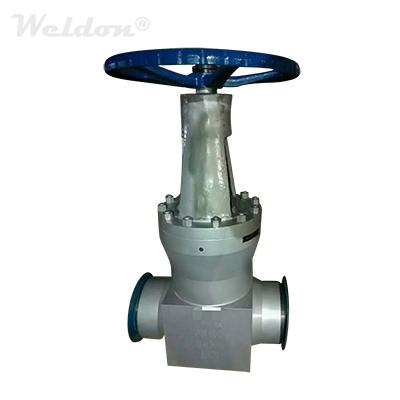

Free Forging Gate Valve, Open Die Forging, A182 F22, PN100, DN150
Key Specifications / Features
Model No.: PPV-03 Hits: 76
Free Forging Gate Valve Manufacturer, Open Die Forging Gate Valve, ASTM A182 F22, PN100, DN150, BW End, High Pressure Temperature Power, Chemical Plant.
Request a quoteTags:
Detail Information
Size: DN 150
Pressure Rating: PN 100
Body Material: ASTM A182 F22
Connect Ends: BW
Manufactured by open die forging (free forging), apply for high pressure high temperature working condition in power plant and chemical plant.
The features:
Low chance of voids.
Better fatigue resistance.
Improved microstructure.
Continuous grain flow.
Finer grain size.
Greater strength.
Open die forging is drop forging process that metal is getting deformed for desire shapes without any limitation between the top and bottom anvils in all directions utilizing power or pressure. So it is also named as free forging. Compared with the casting, open die forging eliminates the defects such as shrinkage, gas holes, porosity, etc. So materials after open die forging have higher mechanical properties.
Pressure Rating: PN 100
Body Material: ASTM A182 F22
Connect Ends: BW
Manufactured by open die forging (free forging), apply for high pressure high temperature working condition in power plant and chemical plant.
The features:
Low chance of voids.
Better fatigue resistance.
Improved microstructure.
Continuous grain flow.
Finer grain size.
Greater strength.
Open die forging is drop forging process that metal is getting deformed for desire shapes without any limitation between the top and bottom anvils in all directions utilizing power or pressure. So it is also named as free forging. Compared with the casting, open die forging eliminates the defects such as shrinkage, gas holes, porosity, etc. So materials after open die forging have higher mechanical properties.
