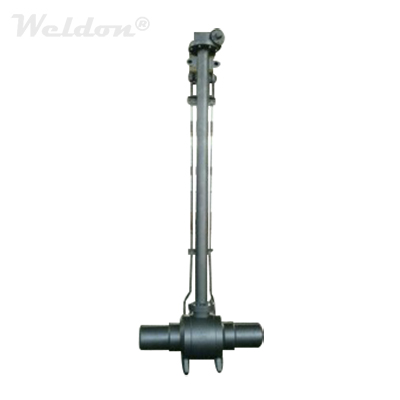

Extended Bonnet Fully Welded Ball Valve, A105N, 6 Inch, 300 LB, BW
Key Specifications / Features
Model No.: FWBV-03 Hits: 51
Extended Bonnet Fully Welded Ball Valve Manufacturer: Fully Welded Extended Bonnet Ball Valves, 6 Inch, Class 300 LB, BW Ends, API 6D, Gear Operated.
Request a quoteTags:
Detail Information
Size: 6 Inch
Pressure Rating: Class 300 LB
Material Body: ASTM A105N
Gear box operated.
Fully Welded with Extended Bonnet Design.
Full Bore or Reduced Bore.
Locking Device (or safety interlock key).
Single Piston Effect, Double Piston Effect.
Emergency Sealant Injection System.
Fire Safe Design. Anti-static Device.
Blowout Proof Stem Design.
Body Vent Device.
Stem Extension for Underground & cryogenic Service.
Standards
Design and Manufacture: API 6D
Face to Face: ASME B16.10
Flanged Ends: ASME B16.5
Test and Inspection: API 6D / API 598
Pressure Rating: Class 300 LB
Material Body: ASTM A105N
Gear box operated.
Fully Welded with Extended Bonnet Design.
Full Bore or Reduced Bore.
Locking Device (or safety interlock key).
Single Piston Effect, Double Piston Effect.
Emergency Sealant Injection System.
Fire Safe Design. Anti-static Device.
Blowout Proof Stem Design.
Body Vent Device.
Stem Extension for Underground & cryogenic Service.
Standards
Design and Manufacture: API 6D
Face to Face: ASME B16.10
Flanged Ends: ASME B16.5
Test and Inspection: API 6D / API 598
