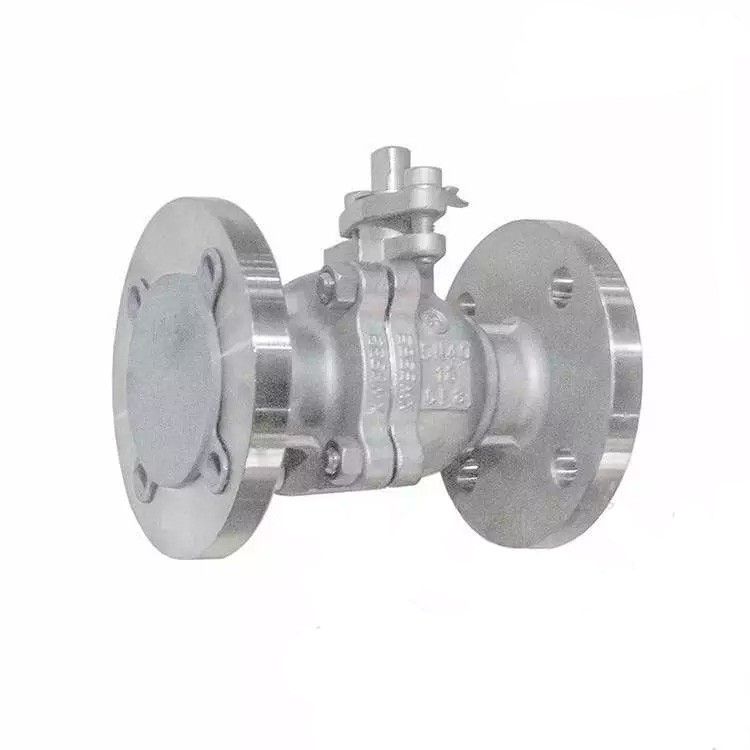

ASTM A351 CF8 Ball Valve, API 608, 2 Piece, 1-1/2 IN, 150 LB

ASTM A351 CF8 Ball Valve, API 608, 2 Piece, 1-1/2 IN, 150 LB

Key Specifications / Features

Model No.: WV-231220-BV-01 Hits: 0

Welcome to our 2 Piece Ball Valve Mill in China, where precision and quality seamlessly converge. Our mill produces expertly crafted valves, designed as side entry, adhering to API 608 standards. Crafted from high-quality ASTM A351 CF8 material, these 1-1/2 inch valves offer reliable performance with a Class 150 LB rating. Featuring DN40 and PN20 specifications, our ball valves are equipped with versatile seat options, including PTFE, RPTFE, Devlon, Nylon, and Peek.

Request a quote

Detail Information

Name: 2 Piece Flanged Ball Valve
Standard: API 608
Pressure: PN16, Class 150 LB
Size: DN40, 1-1/2 Inch
Material: Stainless Steel CF8
Temperature Of Media: -29℃ To 120℃
Seat Material: PTFE, RPTFE, Devlon, Nylon, Peek
Connection: NPT, Female Thread, Threaded, RF, RTJ, SW
Item 2 Piece Type Ball valve
Certification CE,TS,ISO9001,ISO14001,ISO18001
Connection form Flanged
Body material Casting CF8
Seal material Gasket
Feature Easy disassembly and assembly

Product Range

Size: 1/4 - 60 Inch, DN8-DN1500
Pressure: Class 150 LB to Class 2500 LB
Standard: API 608, Gost, Din
Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
