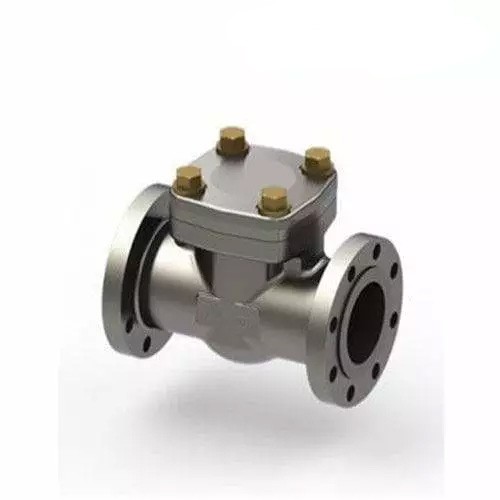

ASTM A105 Check Valve, API 602, 1/2-2 Inch, Class 150-1500 LB
Key Specifications / Features
Model No.: WV-240104-FCV-01
Hits: 158
Explore precision engineering with our ASTM A105 Check Valve, meticulously crafted in China. Compliant with API 602, ASME B16.34, and BS 5352 standards, this valve is available in sizes ranging from 1/2 to 2 inches, catering to Class 150-1500 LB, DN15-DN50, and PN20-PN250. With an Integral Raise Flange, it promises reliable performance across diverse applications.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Design Standard: API 602, ASME B16.34, BS 5352
Body Material: ASTM A105
Nominal Diameter: NPS 1/2-2 Inch
Pressure: Class 150-1500 LB
End Connection: Integral Raise Flange
Face To Face: ASME B16.10, EN 558 (threaded And Sw As Per Manufacturer's Std)
Test And Inspection: API 598
Applicable Standards:
STEEL CHECK VALVES, API 602
STEEL VALVES, ASME B16.34
FACE-TO-FACE, MANUFACTURER STANDARD
FACE TO FACE, FLANGED, ASME B16.10
END FLANGES, ASME B16.5
BUTTWELDING ENDS, ASME B16.25
SOCKET-WELDING ENDS, ASME B16.11
SCREWED ENDS, ASME B1.20.1
INSPECTION AND TEST, API 598
Design descriptions:
BOLTED COVER
CHOICE OF WB, WELDED COVER
SEAT RINGS TYPE
SEAT RINGS INTEGRAL WITH BODY OF LIFT
HORIZONTAL OR VERTICAL SERVICE
SW, SOCKET-WELDING ENDS
SC, SCREWED ENDS
BW, BUTTWELDING ENDS
FLANGED ENDS
| Size | NPS 1/2 - 2 Inch |
|---|---|
| Pressure Rating | Class 150~1500 |
| Material | A105,LF2,F5,F9,F11,F22,F304,F304L,F311,F51 |
| Design & Manufacturing Standard | API 602,ASME B16.34,BS 5352 |
| Face to Face | ASME B16.10,EN 558(threaded and SW as per manufacturer's std) |
| Flanged Dimension | ASME B16.5 |
| Butt Weld Dimension | ASME B16.25 |
| Thread Connection Dimensions | ASME B 1.20.1 |
| Test and Inspection | API 598 |
| Type | Check |
