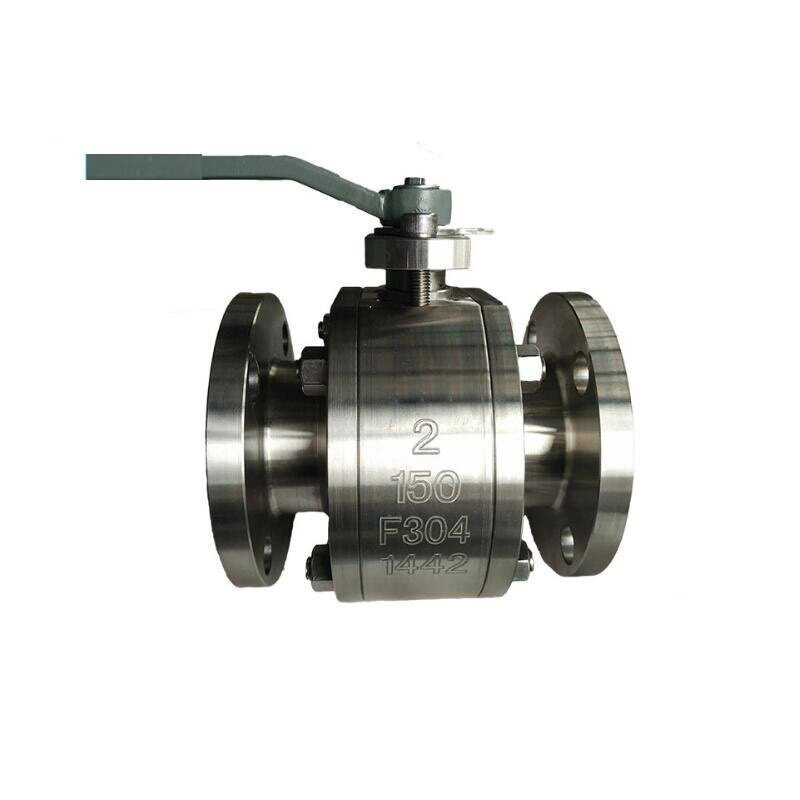

API 6D Ball Valve, ASTM A182 F304, 2 Inch, Class 150 LB, RF
Key Specifications / Features
Model No.: WV-240229-FSBV-01 Hits: 0
China-based manufacturer of API 6D ball valves crafted from forged steel ASTM A182 F304. These valves, sized at 2 inches (DN50), are designed for Class 150 LB applications and PN20 pressure ratings. Featuring a reduced bore and a fire-safe design compliant with API 607 and API 6FA standards, with RF ends ensuring secure connections.
Request a quoteTags:
Detail Information
Standard: API 6D
Material: ASTM A182 F304
Size: 1/2-24 Inch, DN15-DN600
Pressure: Class 150-1500 LB, PN16-PN250
End Connection: RF
Operating: Lever
Port: Reduce Bore
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – 500℃
Material: ASTM A182 F304
Size: 1/2-24 Inch, DN15-DN600
Pressure: Class 150-1500 LB, PN16-PN250
End Connection: RF
Operating: Lever
Port: Reduce Bore
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196℃ – 500℃
