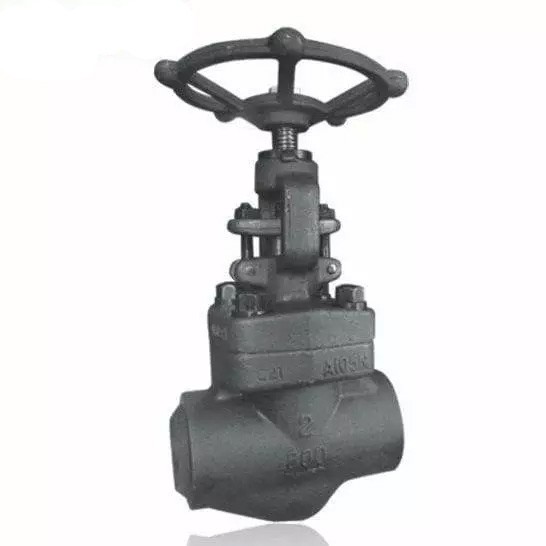

API 602 Globe Valve, ASTM A105N, Bolted Bonnet, 2 IN, 800 LB
Key Specifications / Features
Model No.: WV-231228-AGBV-02 Hits: 1
Welcome to our distinguished ASTM A105N Globe Valve manufacturing facility in China, where precision and innovation converge. Our 2-inch valve, crafted from high-quality ASTM A105N material, is designed to meet and exceed industry standards, including API 602 and ASME B16.34. With a Class 800 LB rating and DN50 specifications, this globe valve ensures reliable performance in various fluid control applications.
Request a quoteTags:
Detail Information
Name: Forged Steel Globe Valve
Media: Oli, Gas, Water
Material: ASTM A105N
Standard: API 602, ASME B16.34
Size: 2 Inch, DN50
Pressure: Class 800 LB
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
End Connection: ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Feature: bolted bonnet forged globe valve, Solenoid forged steel globe valve, straight pattern, Y-pattern, bolted bonnet and welded bonnet design
Product Range
Size: NPS 1/2 - 4 Inch
Pressure: Class 800 - 2500 LB
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, Alloy 20, Monel, Inconel, Hastelloy
Design Features: Outside Screw & Yoke (OS&Y), Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
End Connection: SW, NPT, RF, or BW
Media: Oli, Gas, Water
Material: ASTM A105N
Standard: API 602, ASME B16.34
Size: 2 Inch, DN50
Pressure: Class 800 LB
Power: Manual, Pneumatic, Solenoid, Electrical Actuated
Temperature Of Media: Medium Temperature, Normal Temperature, High Temperature, -65℉ To 450℉ (-54℃ To 232℃)
End Connection: ASME B16.11 (SW), ASME B1.20.1 (NPT), ASME B16.5 (RF, RTJ)
Feature: bolted bonnet forged globe valve, Solenoid forged steel globe valve, straight pattern, Y-pattern, bolted bonnet and welded bonnet design
Product Range
Size: NPS 1/2 - 4 Inch
Pressure: Class 800 - 2500 LB
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, Alloy 20, Monel, Inconel, Hastelloy
Design Features: Outside Screw & Yoke (OS&Y), Bolted Bonnet, Welded Bonnet or Pressure Seal Bonnet
End Connection: SW, NPT, RF, or BW
