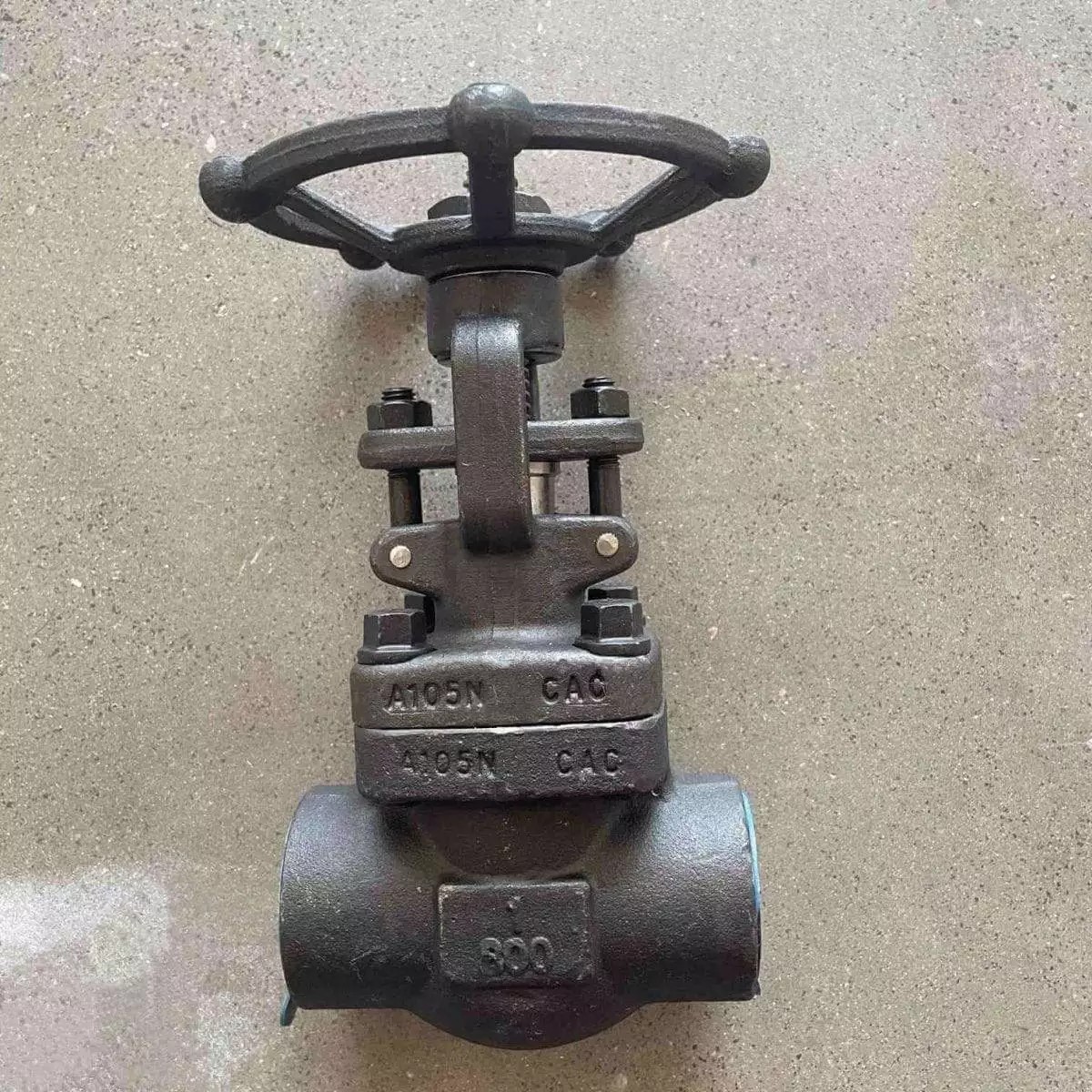

API 602 Bolted Bonnet Gate Valve, ASTM A105N, 1 Inch, 800 LB
Key Specifications / Features
Model No.: WV-231228-AGV-09 Hits: 20
Introducing our state-of-the-art API 602 Bolted Bonnet Gate Valve, proudly manufactured in our advanced mill in China. Crafted from high-quality ASTM A105N material, this 1-inch valve is engineered to meet the stringent standards of API 602. With a robust Class 800 LB rating and DN25 specifications, our gate valve is designed for superior performance in diverse applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 602.
Body: A105N
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
Face to face: MFG'S
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Body: A105N
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
Face to face: MFG'S
Test and inspection: API 598.
Product Range:
Body material: Carbon steel.
Normal diameter: 1/2 - 24 Inch (DN15 - DN600).
End connection: BW, Flanged.
Pressure range: Class 150 - 2500 LB (PN16 - PN250).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Gate valve. |
| Nominal diameter | 1/2 Inch - 24 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon steel. |
| Design standard | API 602. |
| Face to face | MFG’S. |
| Connection end | BW, Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
