Introduction

Needle valves play a crucial role in regulating the precise flow of liquids and gases in a wide range of industrial systems. Characterized by their fine-threaded stems and narrow, tapered plungers, these valves are designed for applications where accuracy in flow control is essential. They’re particularly effective in systems that use low-viscosity fluids and gases at low flow rates, making them common in chemical processing, laboratory instrumentation, low-pressure hydraulic systems, and fuel regulation.

Their precision makes needle valves ideal for protecting sensitive instruments—such as pressure gauges and sensors—from sudden pressure surges that could otherwise cause damage or yield inaccurate readings. Despite their compact size, needle valves offer exact control, reliable shutoff, and high resistance to extreme operating conditions, especially when crafted from durable materials like stainless steel.

In this article, we will explore how needle valves work, their key components, selection criteria, applications, and how to choose the right type for your specific needs.

How Does a Needle Valve Work?

The operating principle behind a needle valve is relatively simple but highly effective. It works by adjusting a conical-shaped plunger, known as the “needle,” into a matching seat to either restrict or allow fluid flow. This adjustability enables operators to finely regulate the flow rate of liquid or gas through the system.

At the heart of the needle valve's design are two main components:

The Needle

This is a long, slender, conically-tapered plunger that resembles a needle, hence the name. When the handle of the valve is turned, it moves the needle down into or up out of the seat. The threading on the stem allows for gradual, precise movement, making very fine flow adjustments possible.

The Seat

The seat is the passageway or port into which the needle enters. It is designed with exact dimensions to match the needle so that when the valve is fully closed, the needle forms a complete seal, preventing any flow or leakage.

Externally, the valve features a handle—typically round or T-bar in shape—that connects to the stem. Rotating the handle causes the threaded stem to raise or lower the needle within the valve body. Because of this screw-type mechanism, operators can achieve extremely precise control over the flow rate, far more than with most other types of manual valves.

The slow, controlled motion is key in preventing pressure spikes or flow instability in sensitive systems. Needle valves are not designed for quick shutoff or on/off use but are ideal in applications requiring slow, accurate modulation of flow.

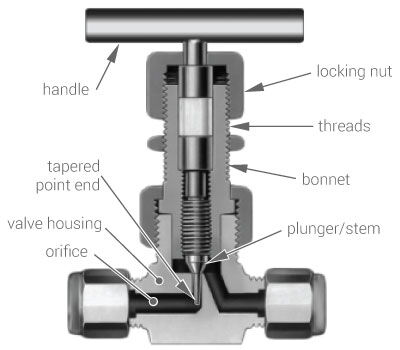

Drawing for Needle Valve

Key Characteristics When Selecting a Needle Valve

When choosing the right needle valve for your system, it’s essential to evaluate several factors to ensure compatibility and performance. The four primary considerations include:

1. Material Compatibility

2. Pressure Rating

3. Valve Size

4. Operating Temperature

Let’s explore each of these in detail:

1. Material Selection

Needle valve bodies are most commonly manufactured from stainless steel or brass, though other materials like plastic or alloy steel are also used depending on the application.

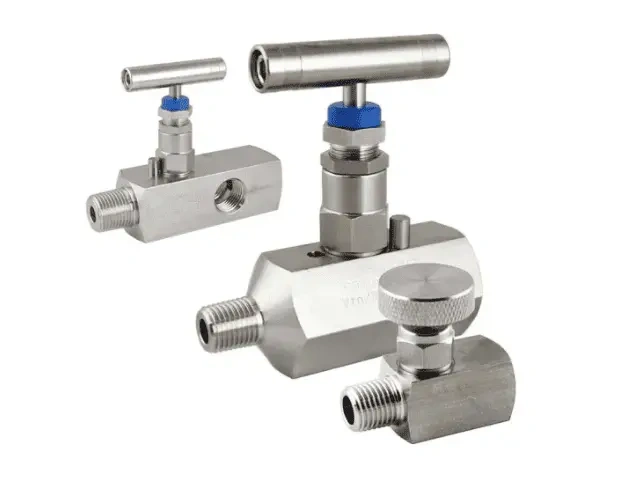

Stainless Steel Needle Valves

Known for their superior corrosion resistance and strength, stainless steel needle valves are the best choice for high-pressure and high-temperature systems. The most common grade used is 316 stainless steel, which offers excellent resistance to chloride-induced pitting and crevice corrosion. This makes it ideal for chemical processing, marine environments, food and beverage processing, and pharmaceutical industries.

Operating range:

Pressure: up to 690 bar (10,000 psi)

Temperature: -254 °C to 649 °C (-425 °F to 1,200 °F)

Brass Needle Valves

Brass is a cost-effective material with decent corrosion resistance, suitable for applications where temperatures and pressures are moderate, and the chemical environment is less aggressive. These valves are common in HVAC systems, low-pressure hydraulics, and instrumentation lines involving air, water, or inert gases.

Operating range:

Pressure: up to 300 bar (4,350 psi)

Temperature: -45 °C to 204 °C (-50 °F to 400 °F)

Plastic and Other Alloys

For lightweight and cost-sensitive applications, plastic needle valves may be sufficient. Specialty alloys like Monel or Hastelloy are chosen for highly corrosive environments, such as sulfuric acid processing or offshore oil and gas systems.

2. Pressure Ratings

Needle valves are designed to operate under a wide range of pressures, and it is crucial to select a valve that can handle your system's maximum pressure without compromising safety.

For example:

Low-pressure systems (under 100 psi) might use lightweight brass or plastic valves.

Medium- to high-pressure systems (up to 10,000 psi) require stainless steel or alloy valves with reinforced seats and stems.

Always verify the pressure rating marked on the valve and compare it with your system specifications to prevent failure or leakage.

3. Valve Size and Flow Capacity

Needle valves are available in sizes typically ranging from 1/8 inch to 2 inches in diameter. The flow capacity is directly related to the valve size and the internal design of the needle and seat.

Smaller valves are ideal for microfluidic and precision instrumentation systems, whereas larger sizes may be used in industrial processing lines. Keep in mind that larger sizes do not always equate to higher flow rates due to the internal taper of the needle, which can still restrict volume flow.

Always consider the Cv (flow coefficient) to determine how much flow a valve can pass under specific conditions. This helps in system balancing and pump selection.

4. Operating Temperature

Different materials offer different levels of resistance to heat and cold. As mentioned, stainless steel valves can withstand extreme temperatures, making them ideal for cryogenic systems or superheated steam lines. Brass valves are limited to moderate temperatures, while plastic needle valves are usually reserved for low-heat environments.

Check the manufacturer’s datasheet to confirm the operating temperature range of any valve under consideration.

Applications of Needle Valves

Thanks to their precision control and durability, needle valves are found in numerous industries and systems. Common applications include:

Chemical Processing Plants

Used to precisely meter chemicals into a reaction process, needle valves help ensure accuracy in dosage and flow rate, which is essential for safety and product consistency.

Hydraulic and Pneumatic Systems

Needle valves control the rate at which fluid or air flows into cylinders or actuators, impacting speed and performance.

Laboratory Instrumentation

Ideal for high-precision environments where minute adjustments to gas or fluid flow are needed, such as gas chromatography or flow calibration systems.

Fuel Regulation in Engines

In aerospace and automotive applications, needle valves are used to meter the flow of fuel into combustion chambers.

Cryogenic Services

When made from suitable materials, needle valves can be used in cryogenic tanks and pipelines where liquid gases like nitrogen or oxygen are stored and dispensed.

Types of Needle Valves

There are several variations of needle valves, each tailored to specific applications:

Standard Needle Valves

These are the most common type, featuring a simple screw-thread stem and a metal-to-metal seat.

High-Pressure Needle Valves

Designed for pressures up to 10,000 psi or higher, these are made from hardened steel or special alloys and often feature reinforced sealing elements.

Mini Needle Valves

Compact in size, these are used in tight spaces or small-scale systems.

Integral Bonnet Needle Valves

Designed for leak-tight performance with fewer potential failure points, these valves often feature welded or brazed bonnets and are used in toxic or hazardous media services.

Angle Needle Valves

With a 90-degree port orientation, these valves are ideal for installations where space or pipe direction requires a turn.

Installation and Maintenance Considerations

Proper installation is critical for needle valve performance. Some key tips include:

Always use appropriate thread sealants or gaskets based on the valve material and media.

Avoid over-tightening, which can damage the needle or seat.

Ensure the valve is oriented correctly—most designs require fluid to enter from a specific direction.

Regular maintenance is minimal, but periodic inspection for seat wear, corrosion, or leaks is recommended. Valves used in corrosive or high-temperature environments should be checked more frequently.

Conclusion

Needle valves are indispensable in applications that demand precision flow control, especially when dealing with low flow rates, sensitive instrumentation, or challenging environments. Their ability to finely tune flow—combined with robust construction and wide material availability—makes them ideal for everything from laboratories to chemical plants to high-pressure gas lines.

When selecting a needle valve, it’s essential to consider factors such as material compatibility, pressure rating, temperature limits, and valve size. Choosing the right valve will not only enhance the safety and performance of your system but also extend the lifespan of your equipment.

As industries continue to push for greater accuracy and tighter process control, the humble needle valve remains a critical component in modern fluid handling systems.
