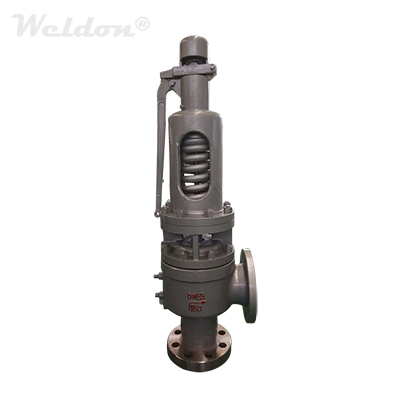

API 520 Bellow Balanced Safety Valve, WCB, 3X4 Inch, Class 900-300

API 520 Bellow Balanced Safety Valve, WCB, 3X4 Inch, Class 900-300

Key Specifications / Features

Model No.: BBSV-03 Hits: 185

API 520 Bellow Balanced Safety Valve Manufacturer: API 520 Balanced Bellows Safety Valve with Flange, Inlet Class 900, Outlet Class 300 LB, 3 X 4 Inch.

Request a quote

Detail Infomation

The allowable tolerance of the seat pressure: ≤±3% of the set pressure
Overpressure: ≤10% of the set pressure ( gas ) or ≤20% of the set pressure ( liquid )
Blowdown: ≤10% of the set pressure ( gas ) or ≤20% of the set pressure ( liquid )
Leakage: The valve has good seat tightness and the leakage rate conforms to API527.
Bonnet: The bonnet of the safety valve is open, allowing the spring chamber to communicate with the atmosphere, which is beneficial to reduce the temperature of the spring, and is mainly suitable for containers of high temperature gas in which the medium is steam and does not pollute the atmosphere.
Lever: The safety valve can be opened manually by the lever when the media pressure over 75% of the setting pressure (On the premise of ensuring safety).

Design: ASME, API 526, API 520, ASME B 16.5
Material: ASTM A216 WCB
Flange Pressure Grade: Inlet Class 900 LB & Outlet Class 300 LB
Sizes Range: Inlet 3 Inch & Outlet 4 Inch
Inlet Temperature Range: -29 ℃ ~ + 427 ℃
Test and Inspection: API 527
