Pressure Balanced Valve, A351 CF8, CJ/T 219, 6 Inch, 300 LB
Key Specifications / Features
Model No.: WV-240108-CTV-25 Hits: 4
Discover excellence in fluid control with our Pressure Balanced Valve, brought to you by a trusted provider. Crafted from high-quality ASTM A351 CF8 stainless steel and featuring SS 304 Trim, this valve is designed to meet the highest standards of performance and durability. With a substantial 6-inch size, Class 300 LB rating, and adherence to CJ/T 219 and CJ/T 167 standards, it offers precision and reliability for a variety of applications.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Product: 800X differential pressure bypass balance valve
Size: DN65
Pressure: PN16
Body Material: ASTM A351 CF8
Trim: SS 304
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Connection: RF Flange

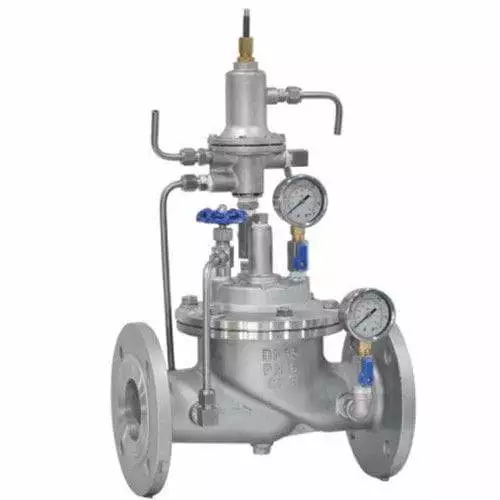

The 800X differential pressure bypass balance valve is composed of a main valve, a differential pressure control pilot valve, a needle valve, a ball valve, a micro filter and a pressure gauge to form a hydraulic control takeover system. Through the specially designed pilot valve control room, the pressure change signal is compared. The main valve opening signal is output. The main valve opening is controlled, and the pressure difference between the inlet and outlet of the main valve is controlled at the set value. This product uses hydraulic self-control, does not require other devices and energy, and is easy to maintain. It is widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.
Size: DN65
Pressure: PN16
Body Material: ASTM A351 CF8
Trim: SS 304
Performance standard:
Quality assurance: IS0 9001
Design: CJ/T 167, CJ/T 219
Structure Length: CJ/T 167, GB/T 12221
Test Standard: GB/T 13927
Connection: RF Flange
The 800X differential pressure bypass balance valve is composed of a main valve, a differential pressure control pilot valve, a needle valve, a ball valve, a micro filter and a pressure gauge to form a hydraulic control takeover system. Through the specially designed pilot valve control room, the pressure change signal is compared. The main valve opening signal is output. The main valve opening is controlled, and the pressure difference between the inlet and outlet of the main valve is controlled at the set value. This product uses hydraulic self-control, does not require other devices and energy, and is easy to maintain. It is widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.
