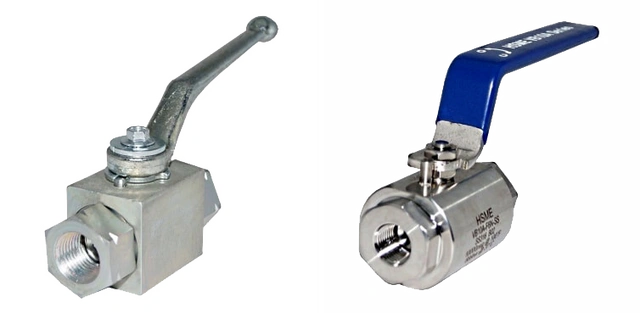

High-pressure ball valves are essential components in various industries where safe, reliable, and efficient fluid flow control is critical. Designed to operate under extreme conditions, these valves are built with durable materials, robust construction, and sealing mechanisms to handle high-pressure environments. Whether in oil and gas, chemical processing, power generation, or water treatment, high-pressure ball valves ensure tight shut-off, leak prevention, and operational efficiency.
Key Components of High-Pressure Ball Valves
High-pressure ball valves are engineered to meet the demanding requirements of high-pressure applications. These valves consist of several key components that work together to ensure reliable performance:
1. Valve Body
The valve body is the main housing that contains all the internal components. It is typically made from high-strength materials like stainless steel, carbon steel, or other strong alloys. The choice of material depends on the application's pressure rating, temperature conditions, and the type of fluid being controlled. Stainless steel is particularly popular due to its corrosion resistance and strength.
2. Stem
The stem connects the actuator or handwheel to the ball, facilitating the control of fluid flow. It transmits the torque required to open or close the valve. In high-pressure and high-temperature applications, the stem must be made from durable materials such as stainless steel, ensuring it can handle the mechanical stress and thermal loads. The stem's design and material also impact the valve's longevity and smooth operation.
3. Seats
The valve seats are internal components that create a tight seal around the ball, ensuring the valve remains leak-free. Seats can be made from metals, elastomers, or other materials, depending on the application requirements. Elastomeric seats are often used in lower-pressure applications, while metal seats are preferred for high-pressure systems due to their ability to withstand extreme conditions. The seat rings are reinforced to ensure they maintain the seal under high-pressure loads.
4. Ball
The ball is the heart of the valve, controlling the flow of fluid. Typically made of strong materials like stainless steel or alloy, the ball has a perforated hole that aligns with the valve's flow path when the valve is open. High-pressure ball valves may feature either a reduced-bore ball for applications requiring reduced flow or a full-bore ball for unrestricted fluid flow. The surface of the ball is designed to distribute pressure evenly, ensuring efficient sealing and minimal wear during operation.
5. Actuator
Ball valves can be actuated manually or with automated systems. In high-pressure applications, manual actuators are typically used for smaller valves or where automation is not required. For larger valves or systems requiring frequent valve operation, electric or pneumatic actuators are preferred. These actuators enable remote control, offering convenience and precision in high-pressure situations.
6. Trim
The valve trim refers to the internal components that come into contact with the fluid. This includes the ball, stem, seat rings, and seals. The trim is designed to be replaceable or removable to allow for easy maintenance and repair. Regular inspection and replacement of the trim ensure that the valve operates effectively and maintains a tight seal under high-pressure conditions.
High-Pressure Ball Valves vs. Low-Pressure Ball Valves
While both low-pressure and high-pressure ball valves share similar components and operating principles, their designs and applications differ significantly due to the pressures they handle.
Low-Pressure Ball Valves
Low-pressure ball valves are designed for fluid systems operating under lower pressure conditions. These valves typically feature a high-pressure seal but are built for simpler operation compared to high-pressure ball valves. The main advantage of low-pressure ball valves is their cost-effectiveness and ease of use, but they are not suited for extreme pressure environments.
High-Pressure Ball Valves
High-pressure ball valves are specifically engineered to manage the challenges of high-pressure fluids. These valves are designed to allow for both shut-off and controlled flow in systems with high pressure. They are used in applications such as flanged connections and pipe systems where high-pressure fluid separation is required. High-pressure ball valves are capable of handling much higher torque and pressure ratings, ensuring that the valve can withstand extreme forces without compromising performance.
Unlike low-pressure ball valves, high-pressure variants are designed to prevent issues like water hammer, which can occur when there is a sudden change in flow velocity. By using robust materials and construction techniques, high-pressure ball valves can safely control fluids at higher pressures, reducing the risk of failure or system damage.
Selecting a High-Pressure Ball Valve
Choosing the right high-pressure ball valve for a specific application involves considering several key factors. Below are the critical elements to consider when selecting a ball valve for high-pressure use:
1. Materials
The material selection for a high-pressure ball valve is crucial for its ability to withstand the forces, temperatures, and types of fluid in the system. Carbon steel and 316 stainless steel are among the most common materials used due to their strength and resistance to corrosion. For applications with extreme pressure or temperature conditions, duplex stainless steel or high-strength alloys are often used for the ball, seat rings, and stem.
For soft-seated ball valves, materials like Devlon V, Nylon, and PEEK are used for the seat inserts due to their wear resistance and low friction properties. Seals are generally made of O-ring elastomers, while PTFE lip seals are also a viable option depending on the application’s requirements.
2. Standards
When selecting a high-pressure ball valve, it is essential to ensure it complies with relevant industry standards. These standards govern the design, materials, testing, and performance of valves, ensuring they meet specific operational criteria. Common standards for high-pressure ball valves include:
API 6D: Standards for pipeline valves.
ASME B16.34: Specifications for pressure-temperature ratings and materials.
ISO 17292: International standard for ball valves.
ANSI/FCI 70-2: Valve seat leakage standards.
3. Connection Types
The type of connection required for the ball valve depends on the specific application. High-pressure ball valves are commonly available with flanged, threaded, or welded connections. Flanged connections are particularly popular in high-pressure applications because they ensure a secure, leak-proof seal between the valve and the pipeline.
4. Valve Seat Rating
The valve seat rating indicates the pressure and temperature ranges that the valve’s seat can handle. This rating ensures that the valve can withstand the pressure and temperature of the fluid passing through it without leaking or failing. High-pressure ball valves must be designed with seat materials and constructions that provide tight shutoff capabilities even under extreme operating conditions.
Applications of High-Pressure Ball Valves
High-pressure ball valves are widely used in various industries, including:
1. Oil and Gas
In the oil and gas industry, high-pressure ball valves are used to control the flow of oil, gas, and other fluids in pipelines and wellheads. These valves must operate reliably under high-pressure conditions, ensuring safe and efficient fluid transportation.
2. Chemical Processing
High-pressure ball valves are essential in chemical processing plants where high-pressure fluids and gases are used. The valves are used to regulate fluid flow in reactors, pumps, and storage tanks, helping to prevent hazardous leaks or accidents.
3. Power Generation
In power plants, high-pressure ball valves control the flow of steam and water in boiler systems, turbines, and other critical components. These valves ensure that the pressure within the system is properly managed to prevent failures or inefficiencies.
4. Water Treatment
High-pressure ball valves are used in water treatment plants to manage the flow of water under high pressure, ensuring that systems like filtration, desalination, and reverse osmosis function effectively.
Conclusion
High-pressure ball valves play a critical role in fluid control systems across various industries. Their robust design, reliable performance, and ability to withstand extreme pressures make them ideal for applications requiring tight shut-off and efficient flow control. When selecting a high-pressure ball valve, it’s important to consider factors such as material selection, industry standards, connection types, and seat ratings to ensure the valve meets the specific needs of the application. By investing in high-quality ball valves and performing regular maintenance, businesses can ensure long-term operational efficiency and safety in their high-pressure fluid systems.
