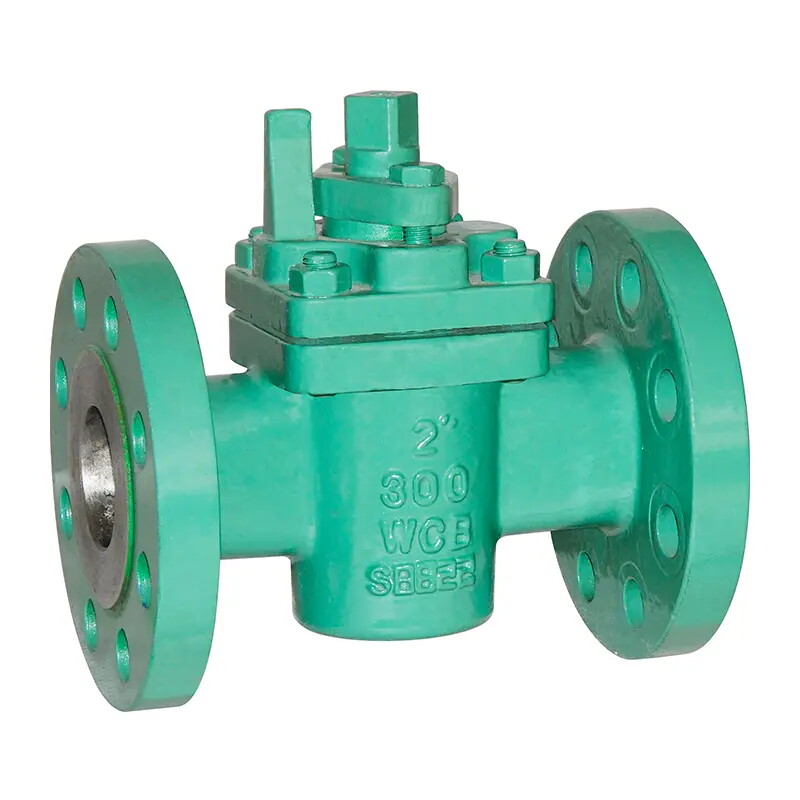

ISO 14313 Sleeved Plug Valve, ASTM A216 WCB, 2 Inch, 300 LB
Key Specifications / Features
Model No.: WV-240218-SPV-01 Hits: 14
Our premier Sleeved Plug Valve sets the standard for excellence in flow control. Engineered to surpass expectations, this valve features a compact 2-inch size and effortlessly handles Class 300 LB applications. With a lever actuator, it ensures precise control and smooth operation.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Design: API 599, API 6D, ISO 14313
Material: Carbon Steel ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A350 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Sizes: 2 Inch, 1/2-14 Inch
Pressure: Class 300 LB, Class 300-900 LB
Face to Face: API 6D, ASME B16.10
End Connection: Flange, Socket Weld, Butt Weld
Test and Inspection: API 6D, API 598
Feature: Fire Safety Design
Actuator: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic
Temperature: -29℃ - 180℃
Material: Carbon Steel ASTM A216 WCB, ASTM A217 WC6, ASTM A217 WC9, ASTM A350 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3, ASTM A351 CF3M
Sizes: 2 Inch, 1/2-14 Inch
Pressure: Class 300 LB, Class 300-900 LB
Face to Face: API 6D, ASME B16.10
End Connection: Flange, Socket Weld, Butt Weld
Test and Inspection: API 6D, API 598
Feature: Fire Safety Design
Actuator: Lever, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic
Temperature: -29℃ - 180℃
