Double Seat Control Valve, A351 CF8, 3/4-16 Inch, 150-600 LB
Key Specifications / Features
Model No.: WV-240130-CTV-04
Hits: 17

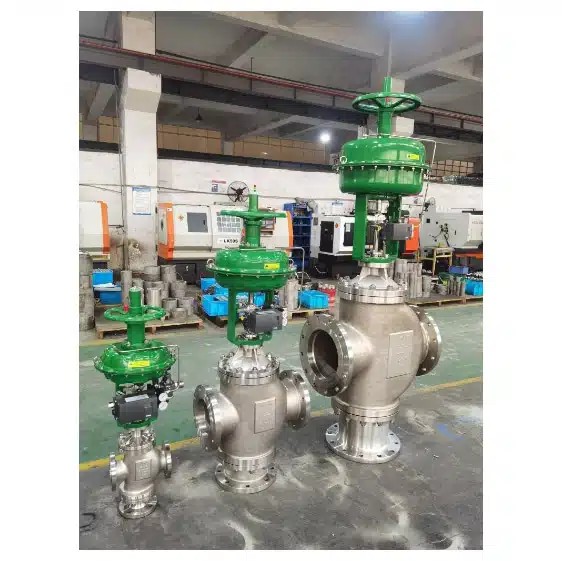

Pneumatic actuated Double Seated Control Valve meticulously crafted from ASTM A351 CF8 and CF8M materials. Available in sizes ranging from 3/4 to 16 inches, suitable for Class 150-600 LB applications, and designed to accommodate DN20-DN400 and PN20-PN100 specifications.
$0.01In stock(Price depends upon negotiation)
Tags
Detail Information
Size: 3/4-16 Inch, DN20-DN400
ANSI Class: 150-600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection: Flanged End, Welded End, Threaded End
ANSI Class: 150-600 LB, PN20-PN100
Body Materials: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A351 CF3M, ASTM A351 CF3
Temperature Range: -196 - +550°C
End connection: Flanged End, Welded End, Threaded End
