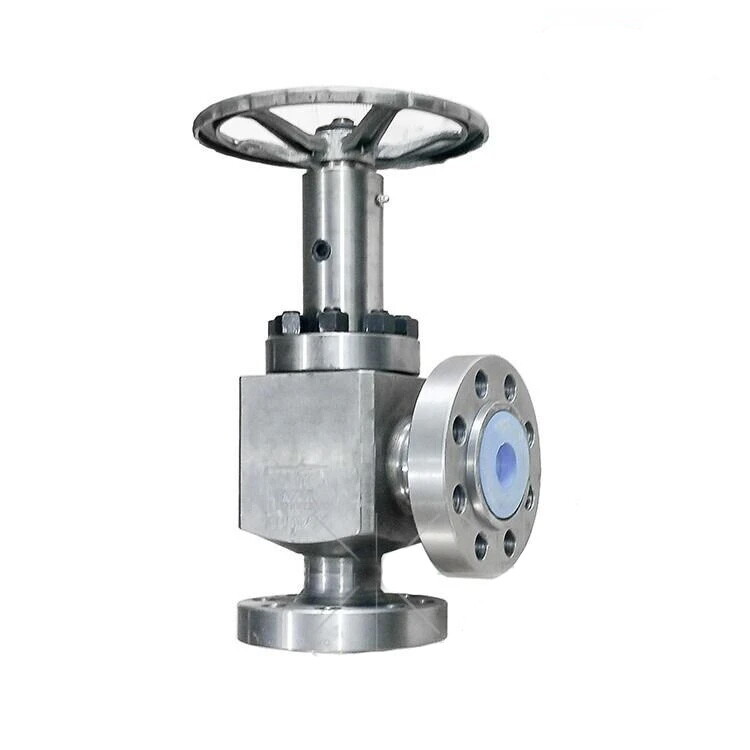

ASTM A182 F304L Globe Valve, 90 Degree, 1-1/2 Inch, 900 LB
Key Specifications / Features
Model No.: WV-240427-AGBV-01 Hits: 0
Introducing our premium 90 Degree Angle Type Globe Valve, meticulously crafted to meet API 602 standards. This valve boasts a 1-1/2 inch size, perfect for Class 900 LB applications, with a robust construction from ASTM A182 F304L material, ensuring durability and reliability. Its DN40 size and PN150 pressure rating make it ideal for demanding industrial environments.
Request a quoteTags:
Detail Information
90 Degree Globe Valve, High-Pressure Globe Valve, Stainless Steel F304L DN40 Throttle Regulating Disc
Name: Forged Stainless Steel Globe Valve-Angle Pattern
Standard: API 602
Material: Stainless Steel ASTM A182 F304L
Size: 1-1/2 Inch, DN40, 40 MM
Pressure: Class 900 LB, PN150
End connection: SW
Media: Oli, Gas, Water
The design of angle pattern globe valves represents a modification of the conventional Tee Pattern Globe valve. In this design, the valve's terminations are set at a 90-degree angle, facilitating fluid flow with a single 90-degree turn. Although they possess a marginally lower flow coefficient compared to wye-pattern Globe valves, they excel in managing pulsating flow scenarios due to their adeptness in handling the slugging effect associated with such flow conditions.
An Angle pattern globe valve serves as an adapted iteration of the traditional "T"-Pattern Globe valve, featuring inlet and outlet connections positioned orthogonally. When deployed at a juncture requiring a change in piping direction, these valves obviate the need for an additional bend, consequently offering a reduced pressure drop compared to conventional "T" pattern globe valves. Angle valves maintain the core characteristics of stem, disc, and seat ring designs akin to conventional globe valves. However, their distinctiveness lies in the redirection of fluid flow, which undergoes a 90° turn within the valve body. This redirection translates to diminished flow resistance compared to a globe valve paired with an elbow, thereby streamlining the pipeline and expediting installation efforts. Beyond these advantages, angle valves continue to demonstrate efficacy in applications characterized by pulsating flow patterns, thanks to their capacity to mitigate the adverse effects of flow slugging.
Name: Forged Stainless Steel Globe Valve-Angle Pattern
Standard: API 602
Material: Stainless Steel ASTM A182 F304L
Size: 1-1/2 Inch, DN40, 40 MM
Pressure: Class 900 LB, PN150
End connection: SW
Media: Oli, Gas, Water
The design of angle pattern globe valves represents a modification of the conventional Tee Pattern Globe valve. In this design, the valve's terminations are set at a 90-degree angle, facilitating fluid flow with a single 90-degree turn. Although they possess a marginally lower flow coefficient compared to wye-pattern Globe valves, they excel in managing pulsating flow scenarios due to their adeptness in handling the slugging effect associated with such flow conditions.
An Angle pattern globe valve serves as an adapted iteration of the traditional "T"-Pattern Globe valve, featuring inlet and outlet connections positioned orthogonally. When deployed at a juncture requiring a change in piping direction, these valves obviate the need for an additional bend, consequently offering a reduced pressure drop compared to conventional "T" pattern globe valves. Angle valves maintain the core characteristics of stem, disc, and seat ring designs akin to conventional globe valves. However, their distinctiveness lies in the redirection of fluid flow, which undergoes a 90° turn within the valve body. This redirection translates to diminished flow resistance compared to a globe valve paired with an elbow, thereby streamlining the pipeline and expediting installation efforts. Beyond these advantages, angle valves continue to demonstrate efficacy in applications characterized by pulsating flow patterns, thanks to their capacity to mitigate the adverse effects of flow slugging.
