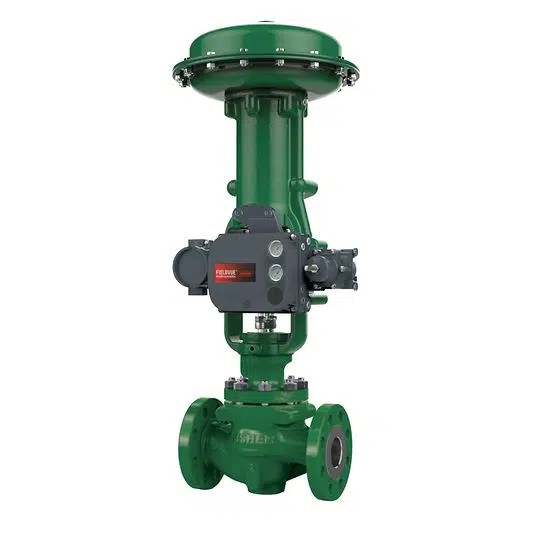

Cage Guided Control Valve, ASTM A216 WCC, 1-30 IN, 1500-2500 LB
Key Specifications / Features
Model No.: WV-240130-CTV-15 Hits: 9
Explore our range of cage-guided control valves milled to perfection. Crafted from robust ASTM A216 WCC material, these valves cover a versatile size range from 1 to 30 inches and are suitable for Class 150-600 LB applications. With options for DN25-DN750, PN20-PN100, and various end connections such as BW, RTJ, threaded, and SW, these valves offer reliability and precision in diverse industrial settings.
$0.01In stock(Price depends upon negotiation)
Request a quoteTags
Detail Information
Size: 1-30 Inch, DN25-DN750
ANSI Class: 150 - 600 LB, PN20-PN100
Body Materials: Cast Iron, ASTM A216 WCC, ASTM A351 CF8M, ASTM A217 WC9
Temperature Range: -198 - +593℃
Certification: Compliant with SIL, fugitive emissions, NACE
Main conditions: noise suppression, cavitation, steam conditions, corrosiveness, low flow, corrosiveness, general working conditions, gas release, flashing
Flow characteristics: equal percentage, linearity, characterization, quick opening
Process connection type: flange type, butt welding, RTJ, thread, socket welding
Shutoff level: Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)
ANSI Class: 150 - 600 LB, PN20-PN100
Body Materials: Cast Iron, ASTM A216 WCC, ASTM A351 CF8M, ASTM A217 WC9
Temperature Range: -198 - +593℃
Certification: Compliant with SIL, fugitive emissions, NACE
Main conditions: noise suppression, cavitation, steam conditions, corrosiveness, low flow, corrosiveness, general working conditions, gas release, flashing
Flow characteristics: equal percentage, linearity, characterization, quick opening
Process connection type: flange type, butt welding, RTJ, thread, socket welding
Shutoff level: Class IV (FCI 70-2), Class V (FCI 70-2), Class VI (FCI 70-2)
